OTW42 LCD BARRICADE
Crash-tested, Interlocking, Multi-purpose
Crash-tested, Interlocking, Multi-purpose
Crash-tested, Interlocking, Multi-purpose
100% RECYCLABLE
The impact of construction zone collisions reaches beyond material loss. Accidents in work zones are often fatal and this reality was the driving force in developing the Traffic Barricade. This product was designed to help mitigate the risk drivers and work crews face each day. This 42-inch Jersey Shape LCD boasts enhanced features to make the barricade more versatile while continuing to meet stringent safety standards.
This traffic control device is approved by the National Cooperative Highway Research Program (NCHRP) 350 standard for a Longitudinal Channelizing Device (LCD) at Test Level 3 (TL-3) criteria for use in high-speed construction zones. An optional fence kit provides a pedestrian deterrent, offers protection from projectile debris, and can support privacy screening.
Concrete barriers, while popular, are often not required and can contribute to fatal accidents by redirecting vehicles back into active traffic. Traffic cones and drums are also popular, but often create confusion for drivers at normal traffic speeds. Traffic engineers and human factors professionals from Texas A&M concluded that gaps between drums or cones cause significant delays in driver response time. The Traffic Barricade forms a clear line of delineation and is treated like a wall by drivers.

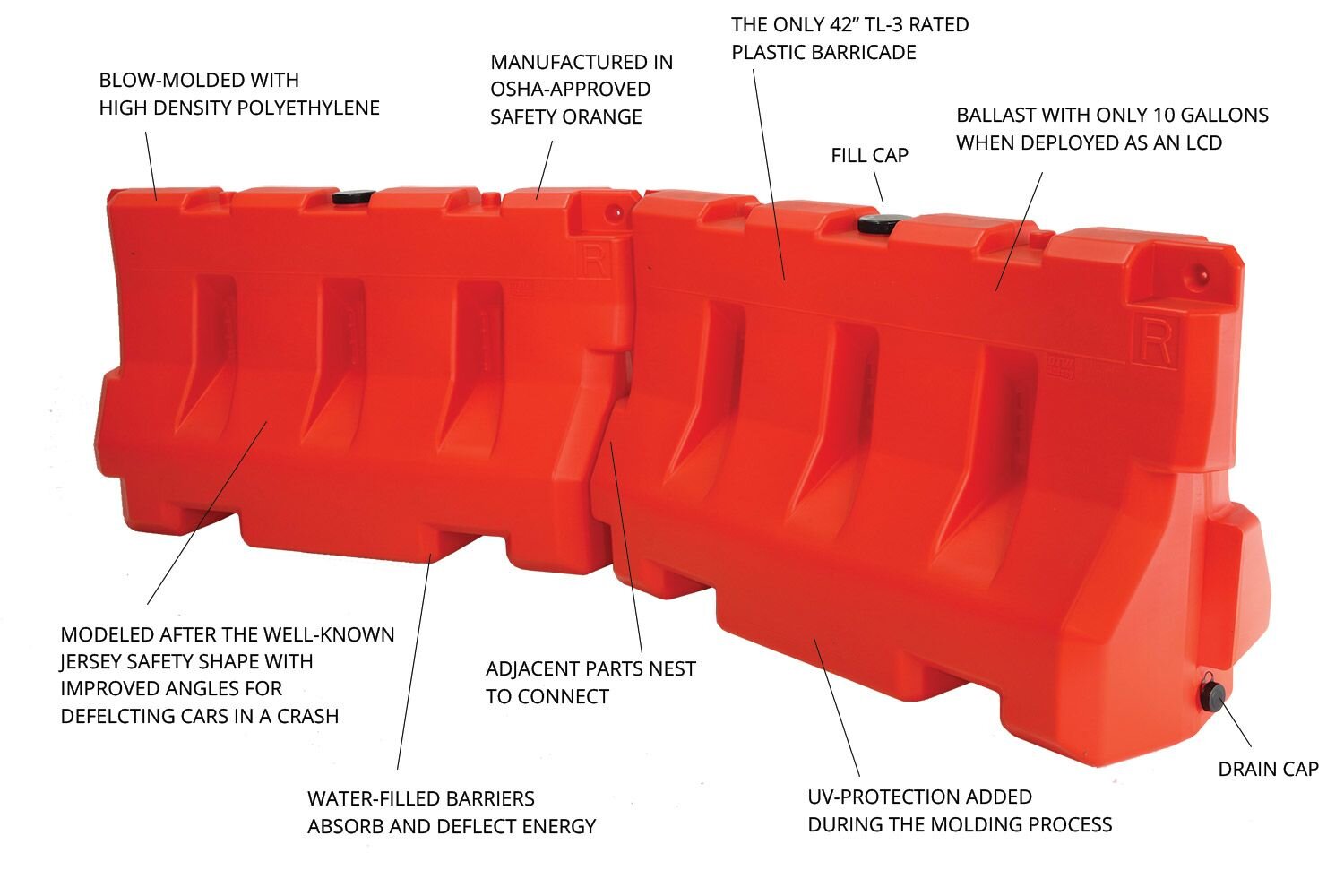

FEATURES & BENEFITS
NCHRP-350 crash tested and accepted at TL3 standards
Compatible with standard amber highway barricade light
Interlocking “J-Hook” design requires no additional hardware or parts
Barricade allows for water ballast expansion in freezing conditions
One-year manufacturing defect warranty
FEDERAL CERTIFICATIONS
Meets MUTCD Specification 6F.66 for LCD
Meets NCHRP-350 TL3 requirements for LCD
OPTIONAL CUSTOMIZATION
Chain link style fence panel
Note: Be sure to evaluate job requirements to determine what type of LCD is required.
SPECIFICATIONS
COLOURS
Safety Orange
White
Custom colours available (minimum quantity required)
COMPOSITION
UV-resistant High Density Polyethylene (HDPE)
Blow molded
SIZE
Height: 42 in / 106.6 cm
Length: 72 in / 182.8 cm
Width: 24 in / 60.96 cm
WEIGHT
Empty: 75 lb / 34.01 kg
Full weights below:
Deployed as LCD: 170 lb / 77.1 kg*
Max Ballast ≈1330 lb / 603.3 kg^
* May not exceed 10.8 gallons / 41L of water, weight calculation based on standard US gallons of water
^ Max water ballast is 150 gallons / 567.8L, weight calculation based on standard US gallons of water
